It’s a faster and safer gateway with powerful Bluetooth® LE & Wi-Fi CPU and WPA 2.0 enterprise encryption for data security and transmission, IoT GW collects data from Bluetooth® LE Beacon, sensor and other IoT devices, and then sends it to the cloud over Wi-Fi / Ethernet. It’s a great option for all industry applications.

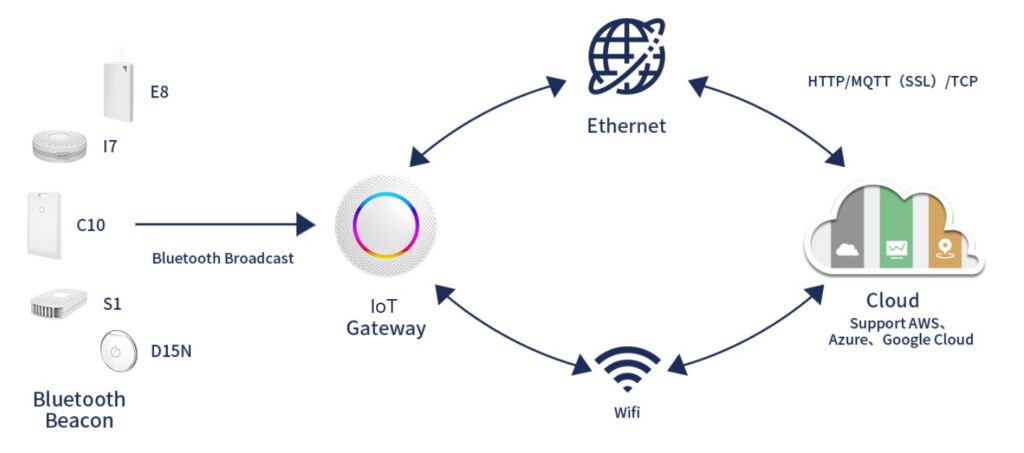

How it works
Applications
A Faster and Greater Connection
IoT Gateway can be widely used in different vertical industries, such as shopping malls, airports, supermarkets, places of entertainment, concert, hospitals, schools, museums, companies, enterprises, administrative units, government departments, factories, logistics, etc., making asset tracking, access control, advertisement promotion, indoor positioning, and industrial automation become possible.
Parameters
General Information
| Color | White |
| Size | 150x150x36mm |
| Net Weight | 180g |
| Accessory | 1x USB cable, mental fixing and screws |
| Power supply (Vcc) | DC 5.0 (+/- 5%) Max. 5.5 Volts |
| Storage temperature | -40℃ to 85℃ |
| Humidity | Max 95%, non-condensing, relative humidity |
WiFi RF Performance
| Wireless | IEEE 802.11b/g/n (single stream) |
| Data rate | IEEE 802.11b, 1-11MbpsIEEE 802.11g, 6-54MbpsIEEE 802.11n(2.4GHz), 7.2-72.2Mbps |
| Frequency band | 2.400 – 2.484 GHz |
| Number of selectable Subchannels | 14 channels |
| Maximum receive input level | -10dBm(with PER < 8%@11Mbps)-20dBm(with PER < 10%@54Mbps)-20dBm(with PER < 10%@MCS7) |
| Minimum receive input level | -87dBm(typ. with PER < 8%@11Mbps)-70dBm(typ. with PER < 10%@54Mbps)-70dBm(typ. with PER < 10%@MCS7) |
| Transmit Power | 17dBm(typical)@802.11b11.3dBm(typical)@802.11g8.2dBm(typical)@802.11n |
| Range | up to 90 meters( in open space) |
Bluetooth® LE RF Performance
| Item | Parameters |
| RF Power Accuracy | +/- 4 dB |
| Receiver Sensibility | -108dBm@250kbps, 0.1% BER-93dBm@1Mbps, 0.1 %BER |
| Maximum Received Signal Strength at <0.1% PER | 0dBm |
| Frequency Deviation | +/-250 kHz @Bluetooth® LE |
| Scanning & concurrently process | 300 Bluetooth® LE packets per second |
| Range | up to 300 meters in open space |
USE CASE:
Asset tracked and ensured. – Shopping Habits Analysis & Precision Marketing – Information Pushing & Indoor Navigation – Medical Consultation Tracking & Safety Responding – Warehouse and Manufacturing Pallet Tracking – Assist Warehouses to Achieve Digital and Visual Management – Reduce Operating Costs & Control Logistics Risks – Function as a Unique Identification Code for Each Pallet – Reach longer distance with lower energy consumption – Extend your solution with accelerometer & temperature sensors – Parking lots tracking – Indoor locating – Asset tracking – Personnel management – Events promotion – Exhibition Management Assistant – Commercial advertising – Industrial monitoring – Civil monitoring – Cold chain logistics – Environmental protection & metering – Keep track of every movement – Asset management & tracking – Activity monitoring – Inventory tracking – Instant and Smart Notificaitons – Everything under Control ..etc.
